24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

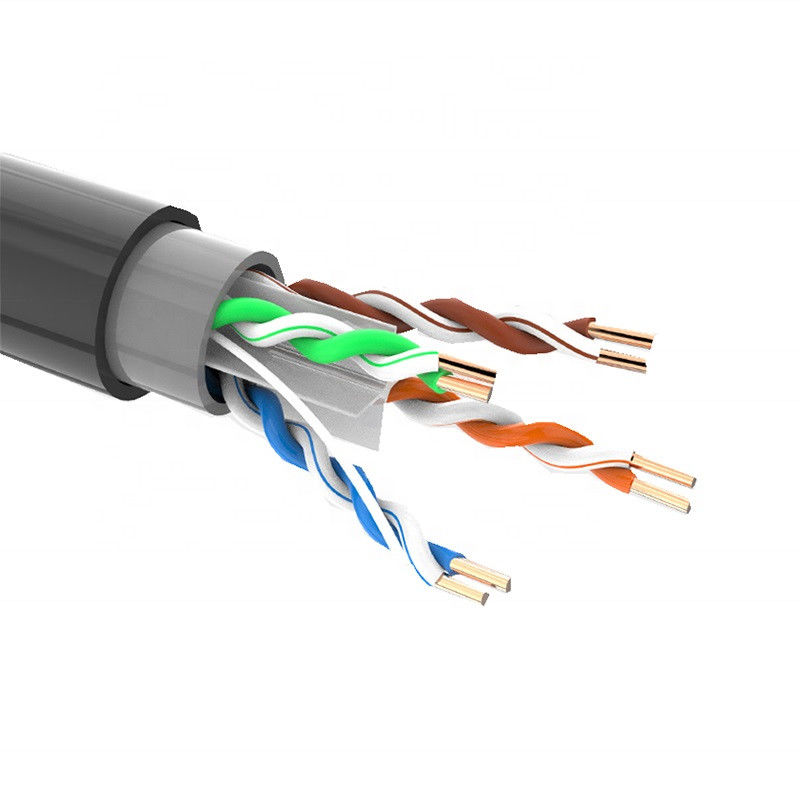

Large Image :  24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

Product Details:

Product Details:

Place of Origin:Guangdong, China
Brand Name:/OEM/ODM
Certification:Unilever/ROSH/CE/ANATEL/CPR/ETL
Model Number:CAT6

Payment & Shipping Terms:

Minimum Order Quantity:Stock as client's request, customized type 30000meter.
Price:Negotiation
Packaging Details:Outer package : carton case
Delivery Time:7-15 business days
Payment Terms:, T/T, MoneyGram
Supply Ability:100 Box/Boxes per Day, sample is available
Contact Now

24AWG Shield 305M Roll Pure Copper FTP Network LAN Cable

Description
Conductor Material:: Bare Copper Length:: 305m/1000ft
Color:: Customized Packing:: Carton
Shield:: FTP Jacket:: New PVC
Outer Diameter:: 5.4± 0.01mm Twisted Pair:: 4 Pairs Twisted
Conductor:: Solid Copper Bandwidth：: Up To 550 MHz.
Bandwidth：: Up To 550 MHz. Type:: Telecommunication Cable
Type:: Telecommunication Cable
High Light:

305M Network LAN Cable

,

24AWG Network LAN Cable


24AWG Shield 305M Roll Pure Copper FTP Cat 6 Cable 4 Pair Cat6 Cable



Advantage

1. With 20 years of production experience, we have mastered the most advanced and mature technology in this field.

2. With stable production ability, we product 500,000 meters per day

3. With a good reputation and numerous customers both at home and overseas 4. With good quality with factory price.

Product Name
Cat 6 Network Cable
Type
Cat 6/Cat 6a
Conductor Material
OFC/BC/CU/CCA/CCS
Conductor Size
23AWG
NO. of Conductor
4P/8C
Insulation Material
PE , HDPE
Jacket
PVC/ ROHS PVC /LSZH PVC
Shield
Unshield/ Shield
Indoor /Outdoor
PVC(Indoor) /PE(Outdoor)
Insulation Thickness
0.2 MM
Jacket Thickness
0.92-0.95 MM
Operating Temperature
-20~70 ℃
Max.Capacitance Unbalance(pF/100m)
≤330pF /100M(Per TIA/EIA-5688.2)
≤60pF/100(Per IEC 61156)
Nominal Velocity of Propagation
72%
Max.Delay Skew(ns/100m)
≤45ns/100m
Max.Conductor DC Resistance 20Deg.C
Max.Conductor DC Resistance 20Deg.C
<div class="magic-16" style="box-sizing: co
