Product Details:
Product Details:
Payment & Shipping Terms:
|

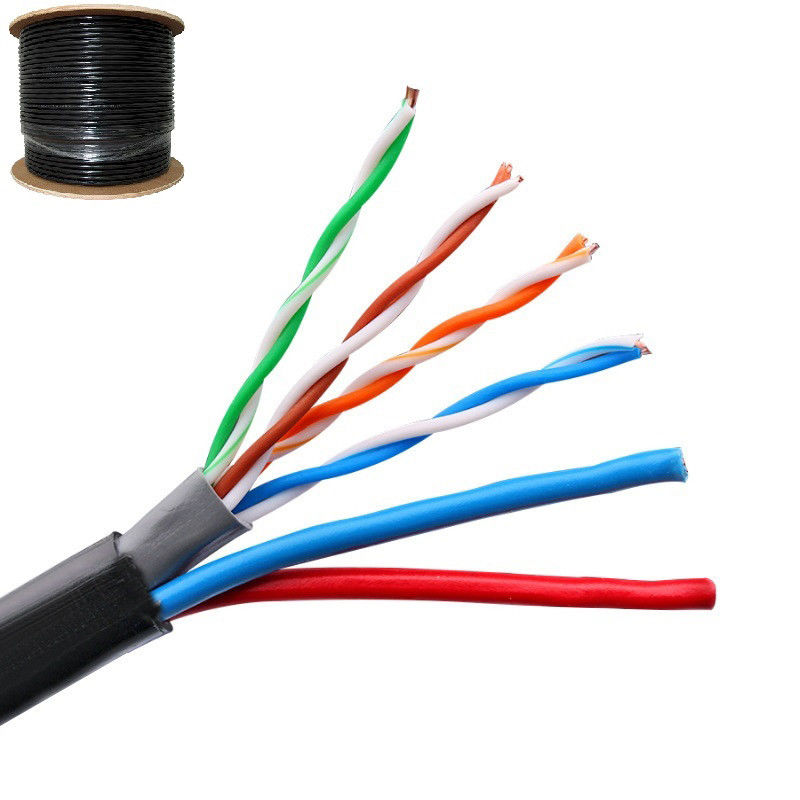

| Model Number:: | UTP CAT5E | Conductor: | 0.5 |
|---|---|---|---|
| Insulation:: | HDPE | Structure: | 4P Twisted Pair |
| Jacket: | PVC/PE | Conductor Material: | CU/CCA |
| Conductor Diameter: | 24AWG | Length:: | 305M |
| High Light: | Unilever Cat5e LAN Cable,1000m Cat5e LAN Cable,1000m pvc cat5e cable | ||
Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC
10) OEM and Customer's designation are welcome
Features:
Eight-core twisted-pair structure
Against external electromagnetic interference
Protect the stability of the signal
24K gold plated contacts
Selection of high-quality three-chip, contact stability, contact with 24K gold-plated
treatment, wear resistance, oxidation,protection signal long-term stable high-speed transmission
Fine workmanship
Precision mechanical suppression 8P8C crystal head, line body and crystal head injection molding, so that the core and contact closely fit, solid pull-pull, plus humanized shrapnel protection design, easy plug operation at the same time,effectively prevent the transparent shrapnel damage
Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
| CONDUCTOR | MATERIAL | Bare copper , CCA, CCS |
| Nom. Dia. | 0.45-0.8mm | |
| DIELECTRIC | MATERIAL | PE |
| Nom. Dia. | 3.8mm | |
| SHIELD | MATERIAL | Al foil |
| Coverage | 95%(negotiable) | |
| JACKET | MATERIAL | PVC |
| Nom. Thick | 0.8mm | |
| Nom. Dia. | 6.20mm | |
| POWER CABLE | MATERIAL | CCA/OFC.ETC. |
| <span sty |
